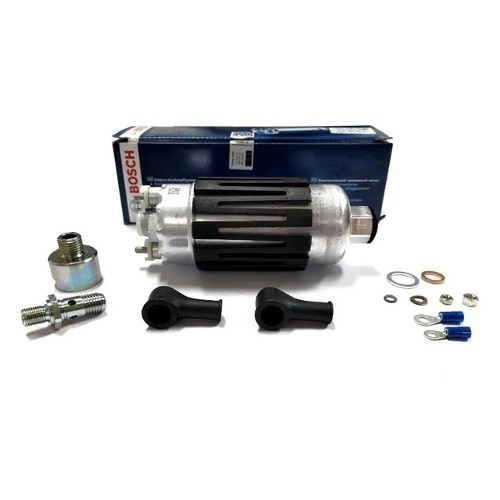

Bosch -200 (0580464200) fuel pump
This is Bosch's new high performance fuel pump that replaces the classic Bosch -044 fuel pump!
This fuel pump flows about 15% more and weighs about 15% less and is better able to handle Ethanol (E85) than the old -044 pump.
Specifications:
- 275 LPH @ 5 bar
- Max working pressure 8 bar
- Inlet: M14x1.5, with adapter supplied to convert to M18x1.5 .
- Outlet: M10x1 without non-return valve includes M12x1.5 banjo stub adapter with integral check valve.
- Current Draw: 17A at 5bar @ 13V
- Built-in 130 micron pre-filter (non-replaceable)
- Power connection: M5 (-), M4 (+) studs
- Diameter: 52mm supplied complete with adator to Dia. 60mm to allow direct fitment in Bosch -044 pump mounts.
- Fuel: Petrol, Ethanol and Diesel. The fuel pump will have a shorter life on Ethanol than on petrol and Diesel.
- Voltage: 12V
- Can be mounted both in-tank and externally.
Bosch -200 vs Bosch -044
Length (without connections)
044 – 150 (160mm with electrical connections)
200 – 150mm (155mm with electrical connections)
Diameter:
044 – 60mm
200 - 52mm (60mm with supplied adapter)
Inlet:
044 – M18x1.5
200 – M14x1.5 (M18x1.5 with supplied adapter)
Outlet:
044 – M12x1.5
200 – M10x1
Electrical connection:
044 - M5 (-), M4 (+)
200 - M5 (-), M4 (+)
Bosch 200 Out-Tank Fuel Injection Pump Replaces 044 Pump
Part number: 0580464200
(0)
£155.88 VAT EX (£187.06 VAT INC)
