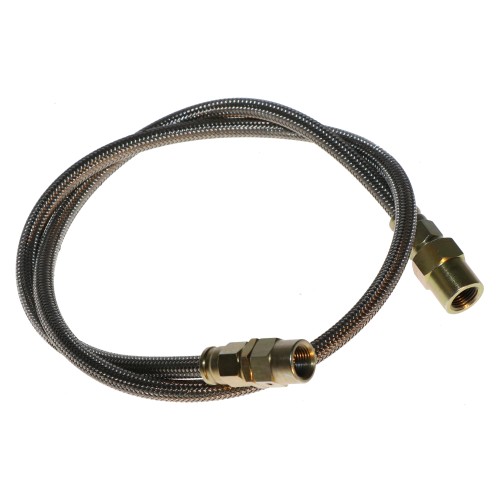

Oil/fuel pressure capillary hoses assembled using -3 stainless braided smooth bore PTFE brake hose. More durable and rated for considerably higher pressures than the standard nylon capillaries these hoses are assembles with plated steel re-useable fittings with a range of end fitment options available. If you require either a length or hose end combination not listed then please contact us, we are happy to assemble these to your specification.
The hose length listed is the cut length of the hose; the total length of the assembly will therefore be longer by the combined effective length of the fittings.
The 1/8 BSP flat seat fittings are supplied complete with a fibre sealing washer.
NPT Hose Ends: neither the male or female NPT hose ends swivel so in order to connect them to the mating component it is necessary to be able to either turn the complete hose assembly or the mating component. This can be particularly awkward if fixed fittings are used on both ends of the hose. To avoid this consider substituting an NPT fixed male for an AN-3 swiveling female hose end and the 1 /8 NPT to AN3 male/male adapter detailed below.
Please Note: These hoses are custom assembled to the selected specification on the day of order. Being a custom made part unless faulty they are not eligible for return, so if you are not 100% certain that the item is correct for your installation please contact us to check before ordering.
OIL-BSP-BSP-1M OIL-BSP-BSP-2M OIL-BSP-BSP-3M OIL-FLAT-BSP-1M OIL-FLAT-BSP-2M OIL-FLAT-BSP-3M OIL-BSP-FLAT-FLAT-3M OIL-BSP-FLAT-FLAT-2M OIL-BSP-FLAT-FLAT-1M OIL-BSP-AN3-1M OIL-BSP-AN3-2M OIL-BSP-AN3-3M OIL-FLAT-AN3-1M OIL-FLAT-AN3-2M OIL-FLAT-AN3-3M OIL-NPT-AN3-1M OIL-NPT-MALE-NPT-1M OIL-NPT-AN3-2M OIL-NPT-AN3-3M OIL-NPT-MALE-NPT-2M OIL-NPT-MALE-NPT-3M OIL-BSP-FLAT-NPT-Male-1M OIL-BSP-FLAT-NPT-Male-2M OIL-BSP-FLAT-NPT-Male-3M OIL-BSP-CONVEX-NPT-Male-1M OIL-BSP-CONVEX-NPT-Male-2M OIL-BSP-CONVEX-NPT-Male-3M OIL-NPT-MALE-NPT-SWIVEL-1M OIL-NPT-MALE-NPT-SWIVEL-2M OIL-NPT-MALE-NPT-SWIVEL-3M
APS Stainless Braided Oil Pressure Capillary Hoses
