Stainless Steel Single Ear O-Clips With Liner
PFS
Stainless Steel Single Ear O-Clips With Liner
Description
Reviews
Q & A
Why Competition Supplies?

The single ear clamp with insert has similar properties to regular single ear clips but is improved due to the deployment of the ring. Used widely within motorsport it is designed for clamping which involves soft/hard rubber or plastic materials.

Why the insert?
Ease of compression when clamping soft materials – A small pressing stamped in the stainless steel insert ring ensures it maintains its shape while preventing the item you are clamping from extruding into the ear. The insert also bridges the gap below the clips ear & the curled edges of the insert further protects the hose.

Materials:
Clip: 304 Stainless Steel
Inner Ring: 301 Stainless Steel

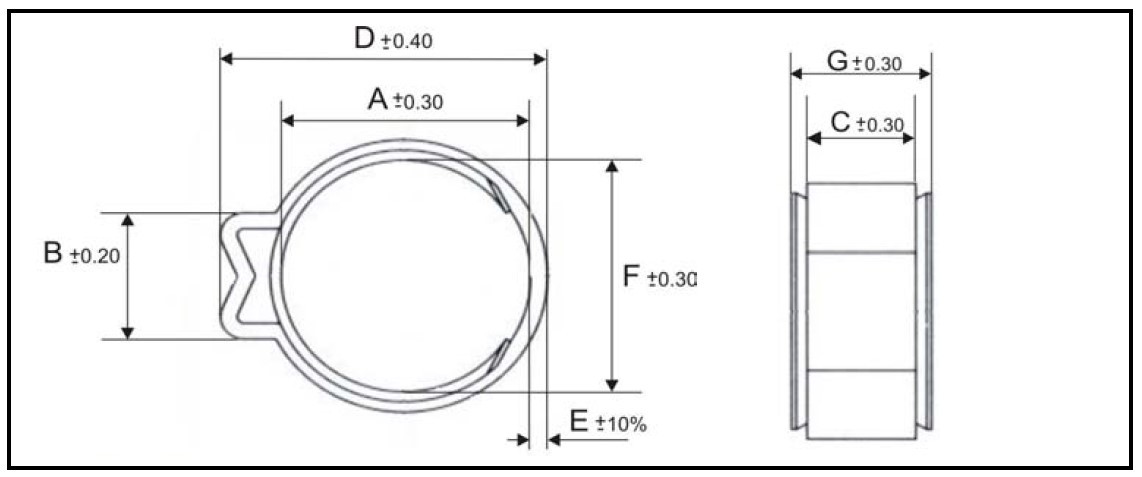

S74, Stainless Steel, Lined O-Clips.
Part No.

Size Range
(mm)

A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
S74401 7.5-8.5 9.3 5.5 6.0 13.0 0.8 8.5 7.8
S74402 8.2-9.5 10.3 6.0 6.0 14.0 0.8 9.5 7.8
S74403 9.0-10.5 11.3 6.5 6.5 15.0 0.8 10.5 7.8
S74404 10.0-11.5 12.3 7.0 6.5 16.0 0.8 11.5 7.8
S74405 10.5-12.5 13.3 7.5 6.5 17.0 0.8 12.5 7.8
S74406 11.5-13.5 14.3 8.0 7.0 18.5 1.0 13.5 8.8
S74407 12.5-14.5 15.3 8.0 7.0 19.5 1.0 14.5 8.8
S74408 13.0-15.3 16.3 8.5 7.0 20.5 1.0 15.3 8.8
S74409 14.0-16.3 17.5 9.0 7.0 22 1.0 16.3 8.8
S74410 15.0-17.3 18.5 9.5 7.0 23 1.0 17.3 8.8
S74411 16.0-18.3 19.5 9.5 7.5 24 1.0 18.3 9.8
S74412 17.0-19.3 20.5 10.0 7.5 25 1.0 19.3 9.8



Part numbers:
S74401 S74402 S74403 S74404 S74405 S74406 S74407 S74408 S74409 S74410 S74411 S74412
