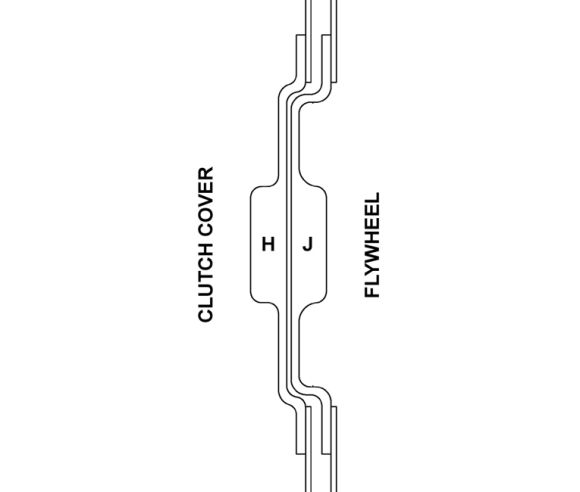

Hub Uses
Inspection Procedure
Reviews
Q & A
Why Competition Supplies?
Tilton 7 1/4" (184mm) 0.104" (2.64mm) thick sintered metallic clutch driven plates with a nested type hub configuration. These plates are supplied as a pair and are used in clutch installation where additional clearance is required for flywheel bolt clearance. They are most commonly use on Cosworth DFV and BD derived engines and are consequently stocked in the two spline types used in these applications i.e. 1" x 23 and 7/8" x 20, other splines are available on request.
Part numbers:
64185-2-HJ-25 64185-2-HJ-30
64185-2-HJ-25 64185-2-HJ-30
Tilton 7.25" (184mm) Nested Sintered Race Clutch Metallic Driven Plate
(0)
£476.17 VAT EX (£571.40 VAT INC)
Spline
Spline is required
