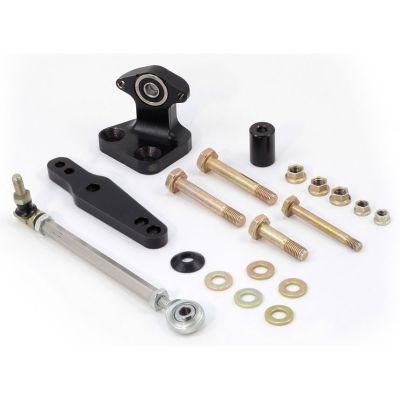

Tilton 72-793 throttle linkage for the Tilton 72-616, 72-618, 72-816, 72-818 72-850, 72-851, 72-856 and 72-857 pedal assemblies. The throttle linkage can be used with either a cable or with a throttle position sensor.
Sensor Features & Benefits
• Contactless technology, long life and impervious to dither vibration.
• Absolute analogue output, no loss of position on power down.
• 90° measuring range, maximised sensitivity optimised for Tilton sensor mount and throttle pedal.
• Dual outputs, redundant output for safety.
• Temperature error less than 50ppm/°C , maximises system accuracy over temperature range.
• Rugged housing and shaft designs, sealed to IP68, suitable for extreme motorsport environments.Throttle Position Sensor Specification
Penny & Giles Specification:
Dual channel contactless throttle position sensor
Operating Angle : 90 Degrees
Output: 0.5 -4.5V analogue
Connection: 50cm Fly Lead with 4 wire core
Penny & Giles Connections:
Red : +V Supply
Black: 0V Supply GND
Yellow: Ch1 Output
White: Ch2 Output
Variohm Specification:
Dual channel contactless throttle position sensor
Operating Angle : 90 Degrees
Output: 0.5 -4.5V analogue
Connection: 50cm Fly Lead with 6 wire core
Variohm Connections:
Channel 1 (CW)
Red : +5V Supply
Black: Ground
White: Signal Output
Channel 2 (CCW)
Green : +5V Supply
Blue: Ground
Yellow: Signal Output
72-793 72-794 72-794-90TPS 72-794-90TPS-V
Tilton Throttle Linkage for 72-616 Pedal Assembly
